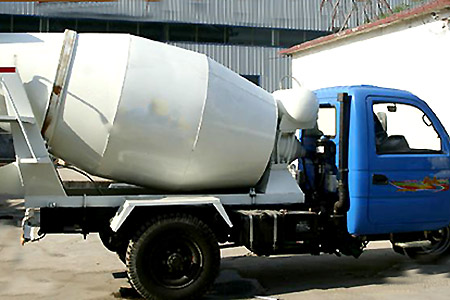

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.
|
Technical data of 1.6cbm |
|
Name |
1.6cbm mixing truck |
Model of engine |
LD km160B |
|
Chassis model |
Wuzheng 1600-1 three wheels series |
Engine type |
Forced circulation cooled |
|
Total weight (kg) |
2560 |
Engine displacement (L) |
1.38 |
|
Dimension L*W*H(mm) |
5300*1650*2600 |
Engine power (kW) |
19.8 |
|
Wheel base(mm) |
3000 |
Max. standard engine speed(r/min) |
2200 |
|
Front overhang(mm) |
400 |
Barrel geometric volume (m³) |
2 |
|
Rear overhang(mm) |
2200 |
Max. mixing volume (m³) |
1.6 |
|
Max. gradeability(degree) |
20 |
Feed rate (m³) |
≥0.5 |
|
Max. speed(km/h) |
≤50 |
Discharge rate (m³) |
≥0.8 |
|
Turning diameter (m) |
≤15 |
Max. rotate speed (r/min) |
6-10 |
|
clutch |
double dry type clutch |
Barrel slope (°) |
13.14 |
|
Transmission type |
Belt type |
Diameter of mixing barrel (mm) |
Φ1400 |
|
Drive mode |
rear wheel drive |
Gear box |
Ky67-3-c |
|
Steering mode |
Steering wheel |
Hydraulic pump |
50 gear pump |
|
Service brake |
Single pipeline rear brake |
Hydraulic motor |
gerotor motor |
|
Parking brake |
Mechanical rear brake |
Water tank volume (L) |
62 |
|
Tyre |
825-16 |
Water supply way |
Air pressure |
